Windows Boot Manager Security Validation or Internal Error

Fix the Secure Boot boot manager validation error from the 2011-to-2023 UEFI CA certificate migration (CVE-2023-24932) - check readiness and stage the 2023 certificate offline with NTLite.

If a PC stops at "Windows Boot Manager - the boot manager encountered a security validation or internal error", or bugchecks with stop code 0xC0430001, a Secure Boot gate is refusing to continue - either the firmware no longer trusts the boot manager's signature, or the boot manager itself found a boot file older than a version floor it already knows. Both are the visible side of the Secure Boot 2011-to-2023 certificate migration (CVE-2023-24932). This guide starts with the fix - how NTLite checks your image or live system for readiness and stages the 2023 certificate so deployments never hit the error - and covers the full technical background below.

What the Error Means

The exact wording varies by firmware - "windows bootmgr encountered a security validation or internal error", "boot manager encountered a security validation", a secure boot violation, or an SVN message - but the cause is the same: a Secure Boot gate is blocking boot code it no longer accepts. Microsoft is replacing the 2011 Secure Boot certificates with 2023 ones to close CVE-2023-24932 (the BlackLotus UEFI bootkit), and the usual trigger is mismatched media - an installer USB whose boot files are older than what the PC, or the image on the USB, already took. The rejection comes through one of two gates:

Validation-error screen - the firmware refuses the boot manager because its signing certificate has been revoked (the firmware's dbx forbidden list)
Stop code 0xC0430001 - the boot manager or OS loader itself refuses to continue because a boot file is older than a version floor it already knows: the boot manager's own version, or the boot revocation list on the media

Either way the fix is the same: get a current boot manager and current boot files onto the machine, from media built with the latest cumulative update integrated. The sections below walk that through with NTLite; the full certificate-migration detail lives in Background at the end.

Seeing "Verification failed: (0x1A) Security Violation" followed by Shim UEFI key management instead? That is a third-party USB loader such as Ventoy, not this migration, and it needs a key enrollment rather than a certificate update. See Verification Failed (0x1A) Security Violation.

Check Readiness With NTLite

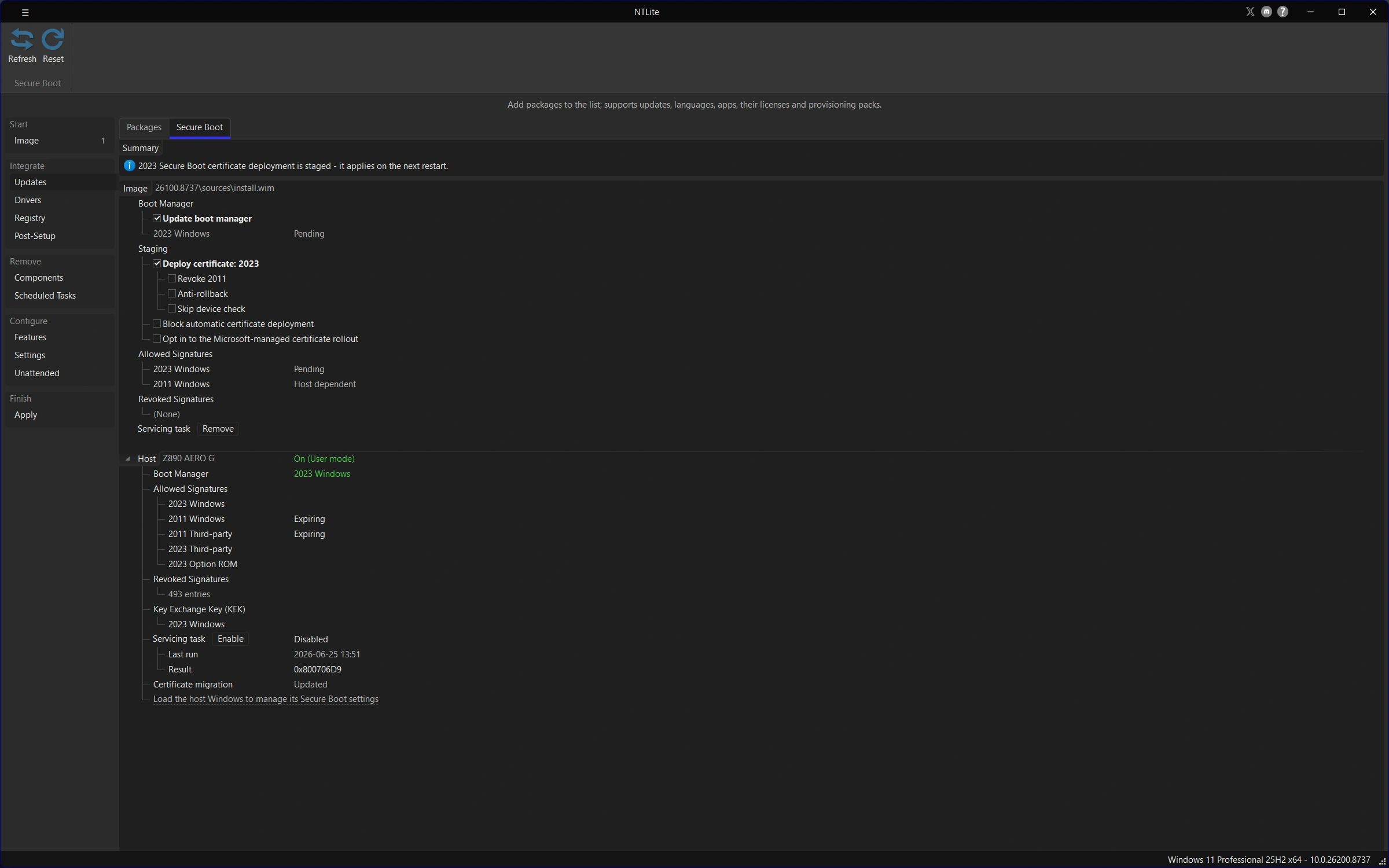

NTLite reads the Secure Boot state of a source ISO, a mounted Windows image, and the live machine it runs on, then reports exactly where each stands in the migration. Load an image (or just run NTLite on the PC you want to audit) and open the Secure Boot tab on the Updates page. It identifies the boot-manager signer (2011 vs 2023), reads the certificate-deployment state from the registry, parses the on-image update payload, and - on the live host - queries the UEFI firmware db/dbx and the deployment event log.

Each finding is plain-language: whether the 2023 certificate is staged, whether the machine is already booting from the 2023 boot manager, and whether the image is new enough to carry the deployment machinery at all. The host section folds the live firmware verdict in next to the offline-image checks, so you can compare the PC you are building on against the image you are building. Every control and readout on the tab is documented in the Secure Boot reference.

Secure Boot is not a separate chore tacked on at the end. The readiness checks run inside update integration and Create ISO, and the cert staging is set once from the loaded image, then rides the normal Apply and ISO build - configure it and move on.

Does My BIOS Need an Update?

Mostly no. The certificate update is a change to the firmware's certificate store, not to the firmware itself. The new Windows certificates go into the db store signed by Microsoft, and any Secure Boot capable UEFI accepts them - a TPM is not involved, and the firmware version does not matter for this part. The 2023-signed boot manager is a plain file update on top.

One step does depend on the motherboard vendor: the new KEK (Key Exchange Key) must be signed by the vendor's own Platform Key, and Microsoft cannot sign it for them. If the vendor never published that signed key, Windows cannot install it, and the deployment stops at that step with event 1803, matching KEK not found. Only a firmware update from the vendor fixes that. Without the 2023 KEK the machine still boots and still takes the 2023 boot manager, but after June 2026 it can no longer receive new db/dbx updates.

NTLite answers this on the second line of the Summary card, at the top of the Secure Boot tab's Host band and of the read-only Secure Boot - Readiness dialog. The line is named 2023 upgrade: and names who can clear whatever blocks the migration:

Ready - the firmware already carries the vendor-signed 2023 KEK. No BIOS update needed; deploy when you want to
Ready (untested) - no attempt has been made yet. The boot manager and db steps work on any UEFI; whether the vendor shipped a 2023 KEK only shows after the first deployment run, so this is not a warning
Vendor firmware update needed - an attempt was made and the firmware would not take the KEK. This is the one that means a BIOS update: check the vendor's site, install it, then refresh the tab
Firmware handoff error - the firmware refused the handoff (event 1795) rather than the key itself; also a vendor-side problem

The tree below the card carries the evidence behind that line: the Key Exchange Key (KEK) row shows whether Microsoft Corporation KEK 2K CA 2023 is present, Allowed certificates show whether the Windows UEFI CA 2023 is already trusted (the part that works on any firmware), and Migration progress plus the event list name a refusal when a deployment was attempted.

There is no public list of ready firmware versions. Microsoft rolls the update out by hardware model and adds models as they prove to take it, so a machine that has not been offered the update yet is not necessarily unable to take it. An absent 2023 KEK before any attempt proves nothing - Microsoft ships vendor-signed KEKs inside the update payload itself, which is why the line reads Ready (untested) rather than a warning until a run has actually tried.

Fix It: Stage the 2023 Certificate

NTLite can stage the 2023 certificate two ways - into an image you are building, or onto the live machine it is running on. Both write the same Secure Boot staging value, and Windows then deploys the certificate over the next boots through its own Secure-Boot-Update servicing. No per-machine commands either way.

On an Offline Image (ISO / WIM)

The durable fix: build media that already carries the 2023 boot manager and queues the deployment, so every machine you install reaches the new state on its own.

Load your Windows ISO or image in NTLite
If the Secure Boot tab reports the image predates the certificate update, integrate the latest cumulative update first on the Updates page (the tab names the build you need - see the support table below)
On the Secure Boot tab, enable the 2023 certificate deployment - NTLite writes the staging value into the image's registry
Apply and build the ISO; each installed machine applies the certificate over its first boots

Deploy all the image files, not just install.wim. The boot manager and the EFI boot files sit outside install.wim, so a USB built by copying only the updated install.wim onto the original media keeps the old 2011 boot manager - and that is precisely what trips the validation error. Use the full ISO that NTLite produces, or copy every file from it.

On the Live Host

To migrate the machine you are on, load its running Windows installation - your live C:\Windows - as the target on the Image page, then open the Secure Boot tab. It reads the live firmware and registry state, and enabling the 2023 deployment writes the staging value straight into the running system. Apply with a reboot; NTLite can also run the Windows Secure-Boot-Update task on the spot so it advances now instead of waiting on the schedule. The certificate and db/dbx steps apply over the next boots, and the boot-manager swap takes effect after the restart.

Which Boot Manager Should Your Media Use?

The machines the media will boot on decide - not the PC you build it on. A 2023-signed boot manager boots only machines whose firmware already trusts the 2023 certificate; the 2011-signed one boots everywhere until a machine takes the dbx revocation. NTLite reads the build host's firmware only to seed defaults and show readiness advisories - the ISO itself carries whatever you choose, and boots wherever that signer is trusted.

At Create ISO, NTLite exposes two independent levers: Update boot manager (the loose boot manager file a USB stick written from the ISO's files boots through) and the Boot Sector generation (the El Torito record, carrying its own copy of the boot manager, that gates booting the ISO as a disc - DVD, a VM mounting the ISO, or a loader such as Ventoy that boots the ISO whole). Neither touches the installed system: Setup lays the boot manager from install.wim, and the installed Windows swaps to the 2023 one on its own once its firmware trusts that certificate. The boot sector defaults to Automatic, following whichever generation the boot manager lands on, which is the right answer for most builds. Override it by fleet:

Your machines	Media choice	Why
All already trust the 2023 certificate	Enable Update boot manager, pick the 2023 boot sector	Future-proof - keeps booting after the 2011 revocation and expiry
Mixed old and new hardware	Keep the 2011 boot manager and sector (the default), stage the certificate deployment	Boots everywhere today; each install migrates itself. Alternative: 2023 media, temporarily disabling Secure Boot on the older machines during install
Older or unsupported hardware only	Leave Update boot manager unchecked	Firmware without the 2023 certificate cannot boot 2023-signed media under Secure Boot

To check whether any given machine trusts the 2023 certificate, run NTLite on it and open the host readout (the Host band on the Secure Boot tab, or the C:\Windows row on the Image page): Allowed Signatures must list 2023 Windows. Staging the certificate deployment in the image is safe for every fleet - it is additive and reversible, unlike the boot-manager choice which decides what the media can boot on today.

The two levers can be split without rebuilding the image: enable Update boot manager and pick the 2011 boot sector, and the same ISO boots older firmware when booted as a disc (DVD, VM, Ventoy) while a USB written from its files carries the 2023 boot manager. The reverse split is not useful - a USB always loads the loose boot manager and ignores the boot sector - so for USB sticks the rule stays simple: keep 2011 unless the target machine has already revoked it, and that machine wants 2023 media anyway.

Virtual Machines

A VM's firmware keeps its own certificate store in its virtual NVRAM, separate from the physical host - the host having the 2023 certificate means nothing inside the guest. VirtualBox's default EFI variables carry only the 2011 certificates, so 2023-signed media fails Secure Boot in the guest even when the host is fully migrated; VMware ESXi releases before 8.0.2 reject the 2023 KEK update outright. If an updated ISO boots on hardware but not in a VM, this is why.

Update the virtualization platform so its firmware templates include the 2023 certificates, then recreate the VM's EFI variable store so the new defaults enroll
Or disable Secure Boot in the VM settings for the install
Or keep the 2011 boot manager on media destined for VMs

Get a Blocked Machine Booting (Manual)

If a PC already shows the error and you need it up now, before rebuilding media:

Use current media. Rebuild the installer USB from a fresh ISO (or an NTLite-built one) so it carries the 2023-signed boot manager. This is the clean fix and keeps Secure Boot on.
Reset Secure Boot keys to factory defaults in the firmware (BIOS/UEFI) setup. This restores the original trust set so a known-good boot manager loads again - useful when a partial update left the machine in a mixed state.
Temporarily disable Secure Boot in firmware to boot once, then apply the updates and re-enable it. Treat this as a stopgap, not a destination.

Windows ships securebootrecovery.efi (post-July-2024 updates) that reapplies the Windows UEFI CA 2023 to db if the firmware Secure Boot settings were reset. It is the recovery path Microsoft documents for a machine that lost the 2023 certificate.

Verify

Re-open the Secure Boot tab - the boot manager should report the Windows UEFI CA 2023 signer
On the live host, the migration shows complete once the system is booting from the 2023-signed boot manager
The Key Exchange Key (KEK) row lists the 2023 KEK - if it still reads (2023 CA not present) after the deployment, the vendor firmware update is what is missing
Boot the media you built - it should pass Secure Boot validation with Secure Boot enabled

Does My Windows Get the Update?

The certificate-deployment machinery ships in cumulative updates released on or after November 11, 2025, and only on serviced branches. NTLite's Secure Boot tab reports this per loaded image and names the exact update; the table below is the same data:

Windows branch	Gets the 2023 cert update?	First cumulative update
Windows 11 24H2 / 25H2, Server 2025	Yes	KB5068861 (25H2+ in-box)
Windows 11 23H2 (and 22H2 via shared servicing)	Yes	KB5068865
Windows 10 22H2 (ESU), LTSC 2021	Yes	KB5068781
Windows 10 LTSC 2019, Server 2019	Yes	KB5068791
Windows 10 LTSB 2016, Server 2016	Yes	KB5068864
Windows Server 2022	Yes	KB5068787
Windows 7 / 8 / 8.1, Windows 10 below 22H2, Windows 11 21H2 (22000), Server 23H2	No	Out of servicing

Windows 10 22H2 without an ESU subscription is excluded from Microsoft's managed rollout - integrate the LTSC/ESU servicing update or move the machine to Windows 11
Server 2012 / 2012 R2 receive the certificates through their ESU monthly rollups
Builds newer than 25H2 carry the certificate machinery in-box - no extra update needed

Background: The 2011-to-2023 Migration

Secure Boot lets the firmware run only boot code signed by a certificate it trusts (the db allow-list) and not revoked by the forbidden list (dbx). CVE-2023-24932 - the BlackLotus UEFI bootkit - abused the 2011-era trust chain, so Microsoft is retiring it end to end: new certificates, a new boot manager, a revocation of the old one, and an anti-rollback version floor.

The Certificate Swap

Microsoft is retiring three 2011 certificates and replacing each with a 2023 one:

Windows Production PCA 2011 -> Windows UEFI CA 2023 - signs the Windows boot manager
Microsoft Corporation UEFI CA 2011 -> Microsoft UEFI CA 2023 + Option ROM UEFI CA 2023 - signs third-party boot loaders, EFI apps, and option ROMs
Microsoft Corporation KEK CA 2011 -> KEK 2K CA 2023 - the key that signs db/dbx updates

A new install also writes the 2023-signed boot manager (the _EX boot set) and, on a full migration, adds the old Production PCA 2011 to dbx and raises an anti-rollback SVN. Once that revocation lands, any media still carrying the 2011-signed boot manager produces the validation error.

Why Now: The 2026 Expiry Dates

The 2011 certificates are expiring through 2026, so Microsoft accelerated the rollout and query volume for this error is climbing:

KEK CA 2011 - June 24, 2026: after this, a machine without the 2023 KEK can no longer receive db/dbx updates
UEFI CA 2011 - June 2026: third-party UEFI apps and option ROMs signed by it stop being trusted
Windows Production PCA 2011 - October 2026 (Oct 19): the boot-manager signing certificate

Expiry by itself does not stop an existing disk from booting - a signature made before a certificate expires stays valid. What blocks a boot is the optional dbx revocation of the old boot manager. The real cost of skipping the update is that the machine stops receiving new boot-security protections (no boot manager updates, no db/dbx updates).

Error 0xC0430001 - Rollback Detected

Some machines surface the migration as a bugcheck (a blue screen) with stop code 0xC0430001 instead of the boot-manager text screen. That value is the Windows status STATUS_SECUREBOOT_ROLLBACK_DETECTED - "Secure Boot detected that rollback of protected data has been attempted". It is a Windows code, so it is raised by the Windows boot manager or OS loader, not by the firmware: a firmware rejection shows the validation-error screen, never a stop code.

It means the boot manager or OS loader found something it is about to run older than a floor it already knows. Anything below a floor reads as a downgrade attack - booting old, still-signed boot code to sidestep a patched one - and is refused. Three floors exist:

The boot manager's own version. Windows records a minimum boot manager version in the firmware (the SVN update, one of the migration steps). At start the boot manager compares its built-in version against it and refuses to run if it is lower. Trips when an old boot manager - an old-cumulative-update installer, a reverted disk image, a stale dual-boot loader - runs on a machine that took the update.
The boot revocation list's minimum-version table. The boot manager loads boot.stl from the media's boot folder and checks every boot component it launches against the minimum version listed there. Trips when a newer list sits beside older boot files.
The revocation list's own date. The OS loader refuses a list older than the newest it has already seen. Trips on installer media whose boot.stl is older than the image on it, or missing - the case a cumulative update integrated into the boot image without refreshing the media's boot files produces.

The 2023 KEK is not a factor in any of the three - a machine without it hits this code just the same, because the version-floor update is signed by the 2011 KEK that every Secure Boot firmware already carries. Neighbouring codes, for the record:

0xC0430002 POLICY_VIOLATION - a value protected by Secure Boot policy cannot be modified or deleted; a write refusal, not a boot block
0xC0430003 INVALID_POLICY - the Secure Boot policy itself is malformed

The fix follows the trigger. An old boot manager on an updated machine: install from media with the latest cumulative update integrated (see Fix It above). Installer media whose boot files lag the image: the common shape is a cumulative update integrated into the boot image while the media's own boot manager stayed at the original build, which a PC that already took the update refuses at the boot manager itself. Rebuild the media with the same NTLite version that integrated the update - v2026.09.11904 or later refreshes the boot revocation list, and the next release also refreshes the boot manager, on the media automatically whenever the boot image is serviced. If the boot image was excluded from the update, or the media came from an older build, the Secure Boot readout on the Updates page names the gap (Boot manager below the image's anti-rollback floor): tick Update boot manager or let the update service the boot image. To boot right now, use the firmware steps in Get a Blocked Machine Booting.

Frequently Asked Questions

Do I need to download the Windows UEFI CA 2023 certificate?

No. There is no certificate file to download and install by hand. The 2023 certificate ships inside a Windows cumulative update, and the actual enrollment happens through the SecureBoot registry staging that Windows - or NTLite, offline - writes. In NTLite you enable the deployment on the Secure Boot tab and Apply; you never fetch a .cer or .bin yourself.

Does my version of Windows get the 2023 Secure Boot update?

Only serviced branches, through a cumulative update released on or after November 11, 2025. Windows 11 23H2/24H2/25H2, the current Windows 10 LTSC and ESU branches, and Server 2019/2022/2025 qualify. Windows 7/8/8.1, Windows 10 below 22H2, Windows 11 21H2, and Server 23H2 never receive it. The support table above lists the exact first update per branch.

Will my PC still boot if I skip the update?

Yes. An existing disk keeps booting - a signature made before a certificate expires stays valid, and expiry alone does not block a boot. What blocks a boot is the optional dbx revocation of the old 2011 boot manager. Skipping the update means the machine stops receiving new boot-security protections, not that it stops booting.

What does the 0xc0430001 boot error mean?

It is the Windows status code STATUS_SECUREBOOT_ROLLBACK_DETECTED, raised by the Windows boot manager or OS loader itself, not by the firmware: something it is about to run is older than a floor it already knows. Three floors exist. The boot manager compares its own version number against the one Windows recorded in firmware; the boot manager checks each boot component against the minimum-version table in the boot revocation list (boot.stl); and the OS loader checks the date of that list against the newest one it has already seen. Typical triggers: an old boot manager on a machine that took the version-floor update, installer media whose boot files were not refreshed together with the updated image, or a reverted disk image. The 2023 KEK plays no part - a machine without it hits this code just the same. Fix: install from media built with the latest cumulative update integrated, using the same NTLite version that integrated it (v2026.09.11904 or later refreshes the boot revocation list on the media automatically), or, to boot immediately, temporarily disable Secure Boot in firmware.

Does the PC I build the ISO on affect whether it boots elsewhere?

No. Media boots wherever the target machine’s firmware trusts the boot manager’s signer - the workstation that built the ISO is irrelevant. NTLite reads the build host’s firmware only to seed defaults and show readiness advisories. Check the machines you will deploy to, not the machine you build on.

Can one ISO serve both old and new machines?

Yes, by keeping the 2011-signed boot manager: every Secure Boot machine trusts it until that machine takes the dbx revocation, and the certificate itself signs boot managers until October 2026. A 2023-signed boot manager boots only machines whose firmware already trusts the 2023 certificate. The installation itself is never the constraint - one install.wim serves every machine, and each installed Windows migrates its own firmware when the certificate deployment is staged. For a mixed fleet, either stay on 2011 for now, or ship 2023 media and temporarily disable Secure Boot on the older machines during install. When the ISO is booted as a disc (DVD, VM, Ventoy), the Boot Sector lever can stay on 2011 while the boot manager goes 2023; a USB written from the files always uses the boot manager, so that split does not help there.

Why does my updated ISO fail Secure Boot in VirtualBox or another VM?

A virtual machine’s firmware keeps its own certificate store, separate from the physical host - the host having the 2023 certificate means nothing inside the guest. VirtualBox’s default EFI variables carry only the 2011 certificates, so 2023-signed media fails Secure Boot in the guest; VMware ESXi releases before 8.0.2 reject the 2023 KEK update. Update the virtualization platform so its firmware templates include the 2023 certificates, or disable Secure Boot in the VM settings.

Does the certificate update depend on my BIOS version or TPM?

Not for the boot-manager part. The Windows UEFI CA 2023 goes into the firmware db store signed by Microsoft, and any Secure Boot capable UEFI accepts it; a TPM is not involved. The one vendor-dependent step is the 2023 KEK, which must be signed by the motherboard vendor’s Platform Key - if the vendor never shipped it, that step stops with event 1803 and only a vendor firmware update fixes it. NTLite’s Key Exchange Key (KEK) row on the Host band shows whether the 2023 KEK is present, which is the reliable readiness answer; there is no public list of ready firmware versions.

Is enabling the certificate deployment reversible?

Adding the 2023 certificate to the database is additive and safe. Revoking the old Production PCA 2011 in dbx is irreversible: once applied, media still signed only by the 2011 certificate stops booting on that machine. NTLite flags the irreversible step before it is staged, so you choose it deliberately.

Next Steps
