Office365 Package and Silent Install

ctrlaltdelllc

New Member
Prerequisites
These are the following tools I used to accomplish a self-extracting Office 365 deployment for post install. You may use other tools if you're comfortable with them, I just found this process easier with the following tools:
  • Office Deployment Tool (ODT) - download
  • WinRAR - download
  • Windows 10/8.1 Image
Steps
  1. Download ODT from Microsoft's official download page, link above.
  2. Run the ODT executable and accept the EULA, prompt will ask you to extract to a location, choose something easily accessible i.e. C:\Office365\

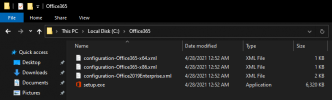

  3. Navigate to C:\Office365\ and edit the appropriate Office365 XML configuration file for your device architecture (x86/x64).explorer_4s521LxxdZ.png
  4. For this example we're going to edit the Office365-x64, replace the configuration with the following (refer to MSDN for supported product IDs):
    XML:
    <Configuration>
      <Add OfficeClientEdition="64">
        <Product ID="O365ProPlusRetail">
          <Language ID="en-us" />
        </Product>
      </Add>

      <Display Level="None" AcceptEULA="TRUE" />

    </Configuration>

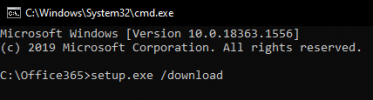

  5. Open a Command Prompt window and change the directory to C:\Office365\ run the following command to download the the full office deployment image (this will take some time to complete depending on your internet speed):
    Code:
    setup.exe /download
  6. Once the download completes, select all files in the directory, open the context menu (right click), and "Add to archive..."explorer_2bosnnrAur.png
  7. Checkmark the Create SFX Archive option in the Archiving Options category, verify the Archive name has changed to .exe, and click OKWinRAR_IugZZNGrEq.png
  8. Once the self extracting archive is created, right click on the Office356.exe and select "Open with WinRAR"
  9. In the newly opened WinRAR window, select the SFX option on the toolbarWinRAR_oIyKrXcYAS.png
  10. Click the "Advanced SFX Options" button at the bottom of the prompt
  11. In the General tab, change the Path to extract textbox to an easily identifiable path i.e. C:\Office365_Deploy (leave all other options as default on this page)1622234307753.png
  12. Select the Setup tab, and insert the following into Run after extraction and select "Wait and return exit code" (there are no new lines in the code; pass the appropriate architecture config file):
    Code:
    C:\Office365_Deploy\setup.exe /configure C:\Office365_Deploy\configuration-Office365-x64.xml
  13. Select the Modes tab, and change Silent mode to "Hide All"
  14. Click OK for both prompts to finish
  15. Once WinRAR completes it's commenting process, your SFX executable should look like this1622235001553.png
  16. Add the Office365.exe application to you Post-Setup for your image, make sure it's the last application in your list as it takes quite some time to install.
Conclusion
This small step by step tutorial is a combination of various sources, varying from MSDN, NTLite Forums, and TechNet. The main SFX tutorial came from davebold370 here on NTLite forums in this post, so all credit should go to him when it comes to the main functionality of this step by step tutorial.


francis11

Active Member
Very nice tut - thanks.
Just to add - it's possible to make exactly the configuration.xml from OCT one want for Office version to install with extended options for each Office program.


ctrlaltdelllc

New Member
Very nice tut - thanks.
Just to add - it's possible to make exactly the configuration.xml from OCT one want for Office version to install with extended options for each Office program.
Oh that's actually extremely helpful, makes it a lot easier than having to go through MSDN and manually entering in the products you're wanting to include/exclude. Thanks for that!


AlHorak

New Member
In step 5, the corrent command syntax is actually "setup.exe /download configuration-Office365-x64.xml" -or any other desired xml file. I got confused here a bit :)


francis11

Active Member
If you create your configuration.xml from OCT it export it (download) as a configuration.xml- the specified channel and Version/ Update ID for the specific Office version is inside the configuration.xml as all Office versions is in the downloaded Office folder before install.
You can download and install in one configuration.xml.
I prefer have 2 xml - one for download the Office files folder with cmd: setup /download configuration.xml
and one for install to minimize the footprint of Windows Install - the latter should be a xml with cmd: setup /configure configuration.xml.
Remember always have the latest ODT setup.exe file.


SomeTechGuy

New Member
Nice setup if you are in a business.
If you have 365 home, you can't customize the install, but I found to way to automate the download and run the install via powershell:


Write-Output "Installing Microsoft 365..."
$progressPreference = 'silentlyContinue'
$Destination = "$env:USERPROFILE\downloads\Microsoft365.exe"
$Source = "https://c2rsetup.officeapps.live.co...version=O16GA&source=AMC&StoreId=CFQ7TTC0K5DM"
Invoke-WebRequest $Source -OutFile $Destination
Start-Process -FilePath $Destination
Rm $destination -Force

I didn't make it silent (not sure if possible) bc in case I want to know when the install completes.


Taosd

Active Member
Download or Install office setup software
Please Visit https://www.poemhunter.com/brenda-comer/
poetry ? dude seriously ?
Microsoft Office is an excellent and famous desktop suite of apps for business or office use. If you want to access this app, you can visit the official website of MS Office. To download, install and activate it, go to office.com/setup. You will get numerous unique features used to write content, prepare a professional presentation, and much more.
that is known, but doesnt answer the question.........

Isn't there a maximum size limit for how many programs can be integrated via SFX?
i dont think there is a limit


newcomer

Member
I am just amazed that you have the budget to deploy all these licenses.

Here I am battling with my company as they are deciding to go with the Open-source version for everything


Orvis

New Member
Nice tuto, thanks.
I'm concerned with Office2019ProRetail.
I was at first trying to install the classic way, by adding the setup.exe in the post-setup panel, adding the "parameters" ( /configure myconfig2019.xml) in the dedicated box and copying the directory with the downloaded files directly in .\sources\$OEM$\$$\Setup\Files
Despite the fact that everything was correctly copied to C:\Windows\Setup\ during installation, when setup.exe was launched by the SetupComplete.cmd script => it immediately generated an Office error before installation could begin.

So I tried your method and it works (almost) really fine. Almost, because the installation freezes at some point, around 60-70%. This is weird because if I don't add the Office2019.exe to the post-setup and I launch it by hand once the Win10 is installed, then Office installs with no freeze. So the Office2019.exe is OK. The freeze only occurs when it is added to the post-setup.
Any ideas ?
